תיאור

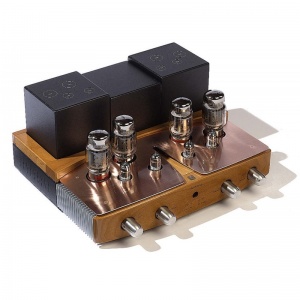

מגבר מנורות הי אנד Line Magnetic – LM 845 PREMIUM , מגבר הדגל של החברה , הבנוי מ 2 חלקים מגבר וספק כח ניפרד. עובד בקונפיגורצית Single Ended – Class A שזה המסלול האיכותי ביותר בתחום מגברי המנורות , מגיע עם מנורות הפרמיום 845 וחיווט ידני Point To Point ללא מעגלים מודפסים וכולל שעוני חיווי וכיוון Bias מובנים , שלט רחוק , ובמשקל כולל של 62 קג.
Press – Magazine Haute-Fidélité N°229 – December 2017 – "les saveurs du réalisme". Read the French article in PDF.
Test bench by hifi-advice.com – View article.
The LM-845 Premium is the result of many years of research on the 845 triode Single ended design. Thanks to its exceptional design and manufacturing quality, it is fast fast becoming the absolute reference in the high end amplifiers world.
With a power output of 2x30W, it can be use with most of the existing reference speakers.
The LM-845 Premium is a combination of two units: One is the amplifier unit and the other is output unit.
The LM-845 Premium uses Shuguang 300B tubes in drivers, the 310A for amplifier and Shuguang 12AX7 in pre-amplification.
There are two user bias controls for 300B and 845 have been used for bias adjustment and two meters has been added to the front plate to allow you to monitor bias with ease. Negative feedback switch is on the front plate that you can choose betweeen two levels of NFB to enjoy the different sound outputs.
The LM-845 Premium uses 8 transformers (power supply, filtering, coupling and output)!
Hightlights
– Single-ended design
– Class A amplifier
– Point-to-point wiring
– High quality components
TUBES
Input stage: 2x 12AX7
Drivers: 2x 300B, 2x 310A
Power stage: 2x 845 « single-ended »
Hand-made construction with the finest point-to-point wiring
Bias control is accessible on top of the amplifier panel with true ampere meter.
SoftStart and time-delay circuit. (30 seconds)
Specially designed EI transformer for power supply
Two EI output transformers with wide bandwidth are applied
ALPS volume control and Realcap capacitors are applied.
Metal and removable tube guard cage
Infrared Remote control
Tubes basics Common remplacements
12AX7 12AX7EH, ECC83, E83CC, CV4004, ECC803, 5751
300B 300A, 4300B
845 845 A/B/C
310A Soviet Union/om12C, WE310A
Specifications
Class A amplifier – 2x30W RMS
THD: 1% (1kHz)
Signal/Noise ratio: 87dB (Pondéré A)
Frequency Response (-1.5dB): 10 – 50.000 Hz
Sensitivity: 220 mV (Built-in Mode)
Input Impedance: 100kΩ
Load impedance for HP to connect: 4/8/16Ω
Connectors
3x Line inputs RCA (pair)
1x Pré-in input
2x Screw terminals compatible with banana plugs
Included Accessories
2x Fuses
1x Remote control
1x Detachable power cord
1x Dedicated cable used to interconnect main amplifier unit to output unit
1x Manual
Generality
Dimensions (W x H x D): Amplifier unit: 435 x 460 x 456 mm
Dimensions (W x H x D): Output unit: 435 x 160 x 456 mm
Total dimensions: 435 x 620 x 456 mm
Total Weight: 62 Kg
Finish: Black
